Road roller
- Model
8208T~8226
- Rated power
140KW~140KW
- Total weight(T)
20~21.6
- Discharge standard
National II
Email:[email protected]
Introduction

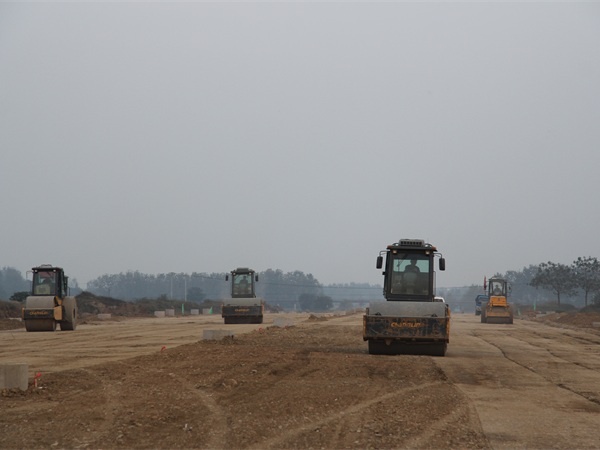

Road roller, also known as compactor, is a kind of road construction equipment. Road roller belongs to the category of road equipment in construction machinery, and is widely used in high-grade highway, railway, airport runway, dam, stadium and other large-scale engineering projects filling compaction operations, can roll sandy, semi-cohesive and cohesive soil, subgrade stabilized soil and asphalt concrete pavement layer. The roller is suitable for various compaction operations by the gravity of the machine itself, so that the compacted layer is permanently deformed and compact. Road rollers are divided into two categories: steel wheel type and tire type.
Parameter
Road roller main model and parameters
| Model | Rated power | Size(mm) | Roller size(mm)Diameter*Width*Thick | Total weight(T) |
| 8208T | 140KW | 6503*2390*3250 | 1550*2130*40 | 20 |

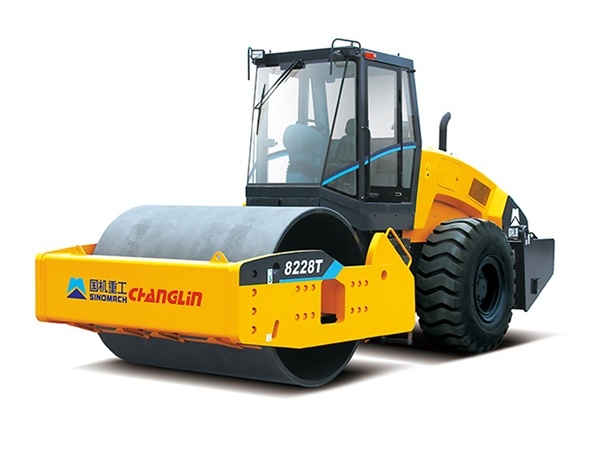

| 8228T | 140KW | 6550*2390*3250 | 1550*2150*50 | 22 |
| 8268T | 140KW | 6820*2450*3250 | 1600*2150*50 | 26 |
| 8206 | 140KW | 6316*2420*3210 | 1550*2150*50 | 20.5 |
| 8226 | 140KW | 6316*2420*3210 | 1550*2150*50 | 21.6 |
Main production equipment
Pretreatment production line: large-scale dissipation treatment equipment, steel plate than the thickness of the treated sheet metal can be between 6~80mm, width 1000~3000mm, to meet the pretreatment of all incoming materials
HSDY CNC forging and shaping equipment: the maximum pressure is 500 tons, the workpiece can be up to 6 meters, and the CNC operation is accurate, high efficiency and good forming
Welding robot machining center: imported by Austrian IGM company, welding penetration is large, high strength, can operate continuously for 24 hours, and the quality reaches Komatsu KES standard
Parts warehouse: spacious parts warehouse, equipped with assembly line transmission system, three-dimensional shelves.
Neat machining workshop: equipped with Italian M7 vertical horizontal type, Sweden HMC800 horizontal type, American T30 horizontal type and other CNC machining equipment to ensure that the machining accuracy meets the design requirements
Assembly line assembly workshop:
